Wet Press Ferrite Motor Magnets For Automobile Motors Customized Magnet W024​

What does Xinheng offer to customers?

Our company manufactures an-isotropic ceramic strontium ferrite magnet made by means of wet compression molding.

What's the feature of ceramic strontium ferrite magnet made by wet compression molding?

• Composition - Contain strontium ferrite (SrFe12O19) as the primary magnetic material. Strontium ferrite has good magnetic properties and is inexpensive to produce.

• Density - Have a high relative density of around 95% or more after sintering. This gives good mechanical strength.

• An-isotropy - Exhibit strong magnetocrystalline an-isotropy due to their hexagonal crystal structure. This results in a preferred direction of magnetization along one axis.

• Particle shape - The strontium ferrite powder used typically has a hexagonal platelet morphology which helps promote magnetic an-isotropy during molding and sintering.

• Molding method - The powder is mixed with a liquid binder and compression molded into a dense green compact using high pressures. This orients the an-isotropic particles.

• Firing process - The compact is then sintered at high temperature to develop density while preserving the induced magnetic anisotropy orientation from molding.

• Remanence - Have a maximum magnetic flux density or remanence along the axis of anisotropy, but little/no remanence perpendicular to it.

• Coercivity - Usually have medium to high coercivity depending on additives, density, and anisotropy level achieved.

What's the key advantages of ceramic strontium ferrite magnets made by wet compression molding?

• Low cost - Strontium ferrite is inexpensive and the wet molding process is relatively simple. This makes them cheaper than rare-earth magnets.

• High magnetic property-Even without heavy rare earth element additions, strontium ferrite magnets can achieve coercivities of 700-1000 kA/m, making them suitable for many applications.

• Dimensional consistency - The compression molding process allows for close dimensional tolerances and uniform magnet shapes to be produced consistently.

• Temperature stability - Strontium ferrite magnets have high Curie temperatures, typically around 450-470°C. They maintain good magnetic properties over a wide operating temperature range.

• Resistance to corrosion - Being fully dense ceramic materials, they are not prone to corrosion like bonded magnets containing additives.

• Mass production capability - The molding process is amenable to automated high-volume manufacturing of complex magnet geometries.​​

PHYSICAL PROPERTIES OF SINTERED FERRITE MAGNETS

What's the application of Xinheng's permanent ferrite magnets?

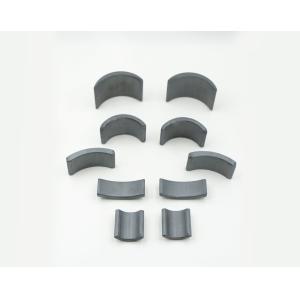

Xinheng mainly manufactures the following types of ceramic arc segment magnets:

• Automotive motor magnet including automobile starter motor magnet, automobile wiper motor magnet, automobile rolling window motor magnet, automobile heating and cooling fan motor magnet, automobile seat motor magnet, automobile sunroof motor magnet, automobile powsteering motor magnet, automobile tailgate motor magnet, automobile oil pump motor magnet, automobile ABS anti-lock motor magnet, etc.
• Inverter home appliance magnet including inverter washing machine motor magnet, inverter refrigerator motor magnet, inverter air-conditioner motor magnet,etc.
• Fan motor magnet including ceiling fan motor magnet, floor fan magnet, etc.
• Motorcycle motor magnet including motorcycle starter motor magnet, motorcycle flywheel magneto magnet, etc.
• Electrical tool motor magnet including cutting machine motor magnet, electric sawing machine motor magnet, lawn mower motor magnet, gasoline generator magnet, etc.
• Actuator motor magnet including medical bed actuator motor magnet, TV lifting bracket actuator motor magnet, desk lifting actuator motor magnet, smart home appliance actuator motor magnet, etc.

How Xinheng fabricates its permanent strontium ferrite magnet?

FERRITE POWDER GRADE OF AUTOMOBILE MOTORS MAGNET

AUTOMOBILE MOTORS MAGNET SPECIFICATION TABLE

Introduction Of Oil Pump Motor:

Pump Motor Power A modified specific motor that drives an oil pump. The oil pump motor includes the motor body, the front end cover and the output drive shaft. A stepped hole is opened on the front end cover, and the output drive is retracted into the front end cover for a hollow shaft. The shaft hole aperture is matched with the outer diameter of the input drive shaft of the oil pump. The pump is divided into high pressure and low pressure: that is, the high pressure plunger pump relies on the camshaft in the pump to drive the plunger to move up and down in the plunger sleeve to produce high pressure oil supply to the injector.

To know more about Xinheng Magnets

Sichuan Xinheng Magnetic Materials Co., Ltd is located in Mianzhu City, Sichuan Province, which has been known as " the leader of ancient Shu and the important town of Yizhou " since ancient times.
The company was founded in May 2008. It was formerly the designated magnetic material production enterprise of the Ministry of Electronic Industry in Aba Prefecture, Sichuan Province. After decades of accumulation in the magnetic materials industry, the company has developed into a national high-tech enterprise integrating the design, development, production and sales of permanent magnet ferrites. Our factory covers an area of 14,000 square meters, has an annual production capacity of 8,000 tons, and has more than 350 employees.
The company owns China's first independently developed servo fully automatic wet hydraulic press and China's first double-layer roller kiln.It has the ability to independently design, develop and process various types of tools and molds.
The company's main product is sintered ferrite permanent magnet. The product range covers automobile motors, motorcycle motors, universal mechanical motors, household appliance motors, household fan motors, variable inverter motors, water pump motors, etc. The products are widely used in automobiles and motorcycles, office equipment, electric tools, household appliances, fitness equipment and other fields.
The company's products are mainly sold to motor manufacturers in Europe, America, South Asia, Taiwan, southwest China, East China, and South China.
The company adheres to the business tenet of "quality assurance, professional service, and customer satisfaction". Its business philosophy is to improve the level of operation and management, to imporove the quality of employees, reduce production costs, and improve the market competitiveness of enterprises. It adheres to the development philosophy of putting people first, making high-quality products with heart, seeking development through innovation, and building brands with integrity. We are willing to create a win-win relationship and grow together with our customers!
